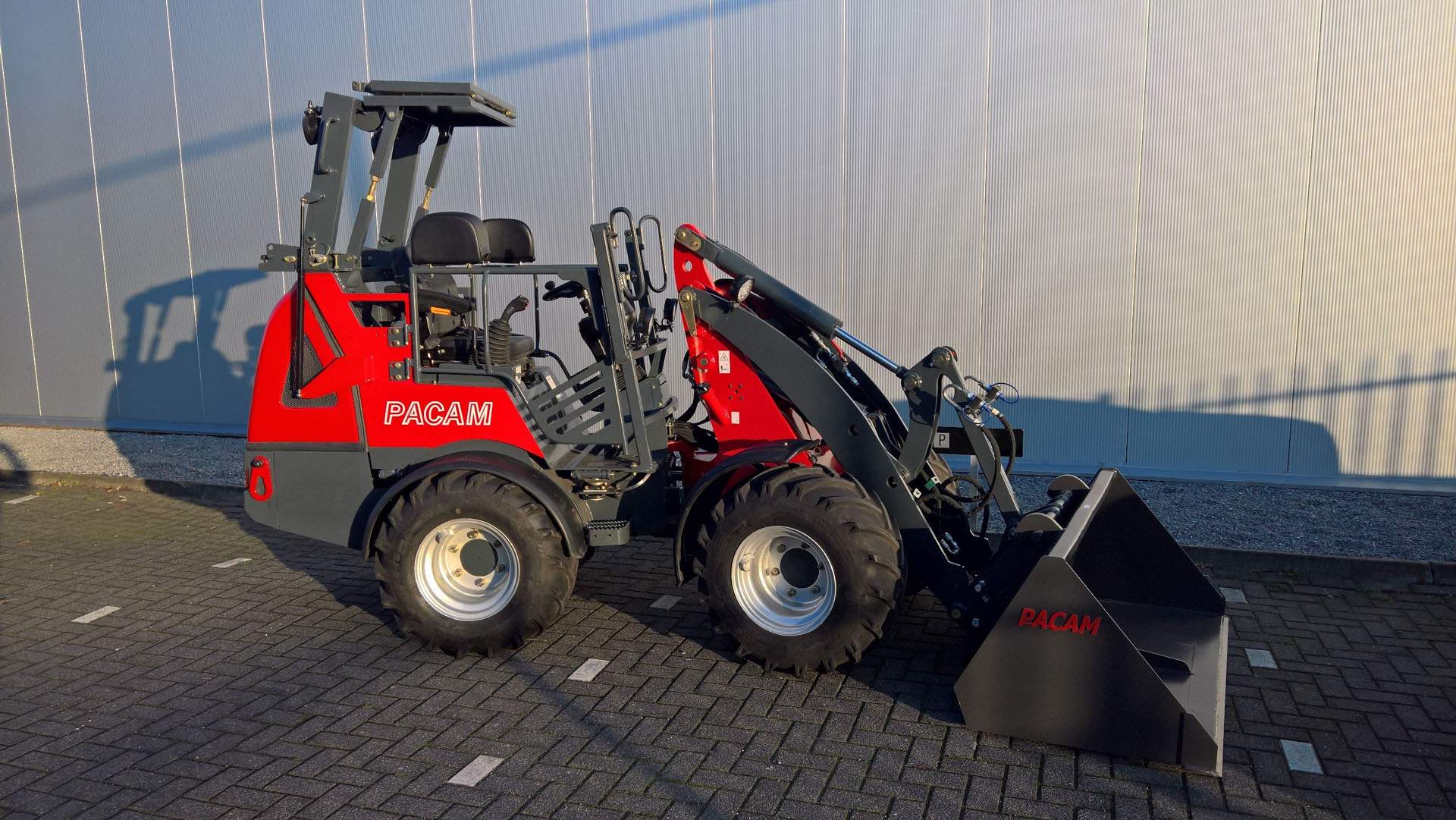

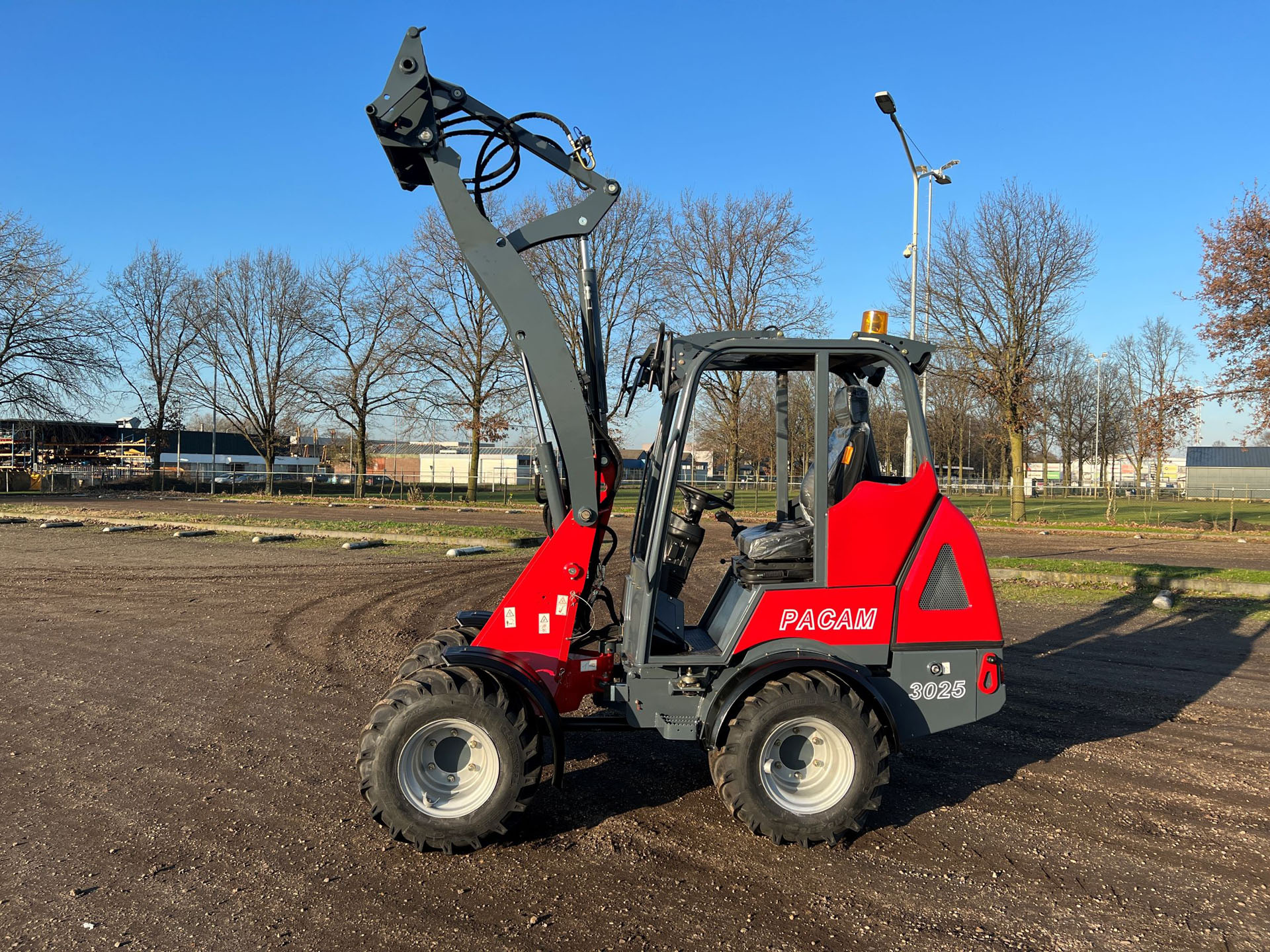

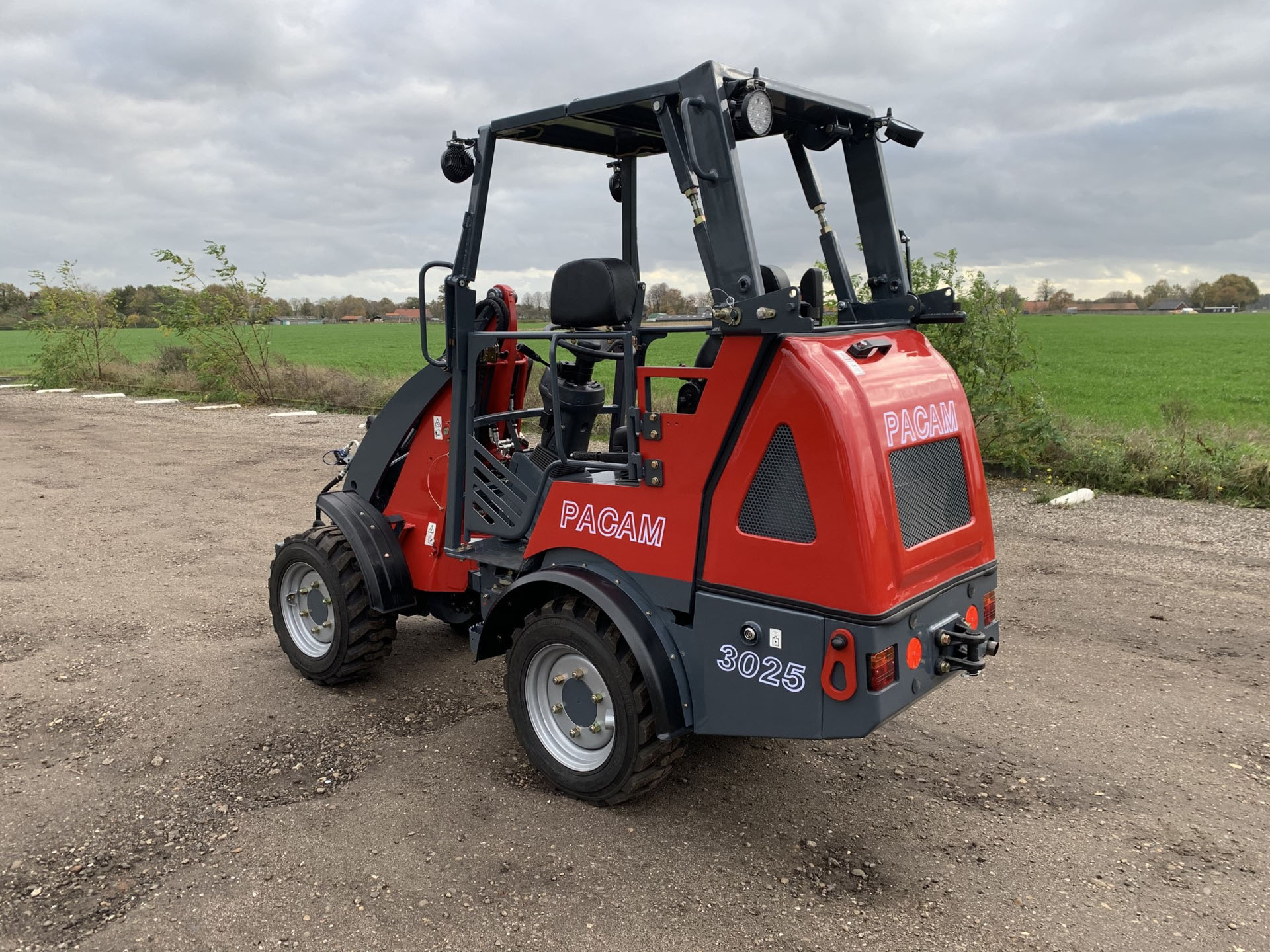

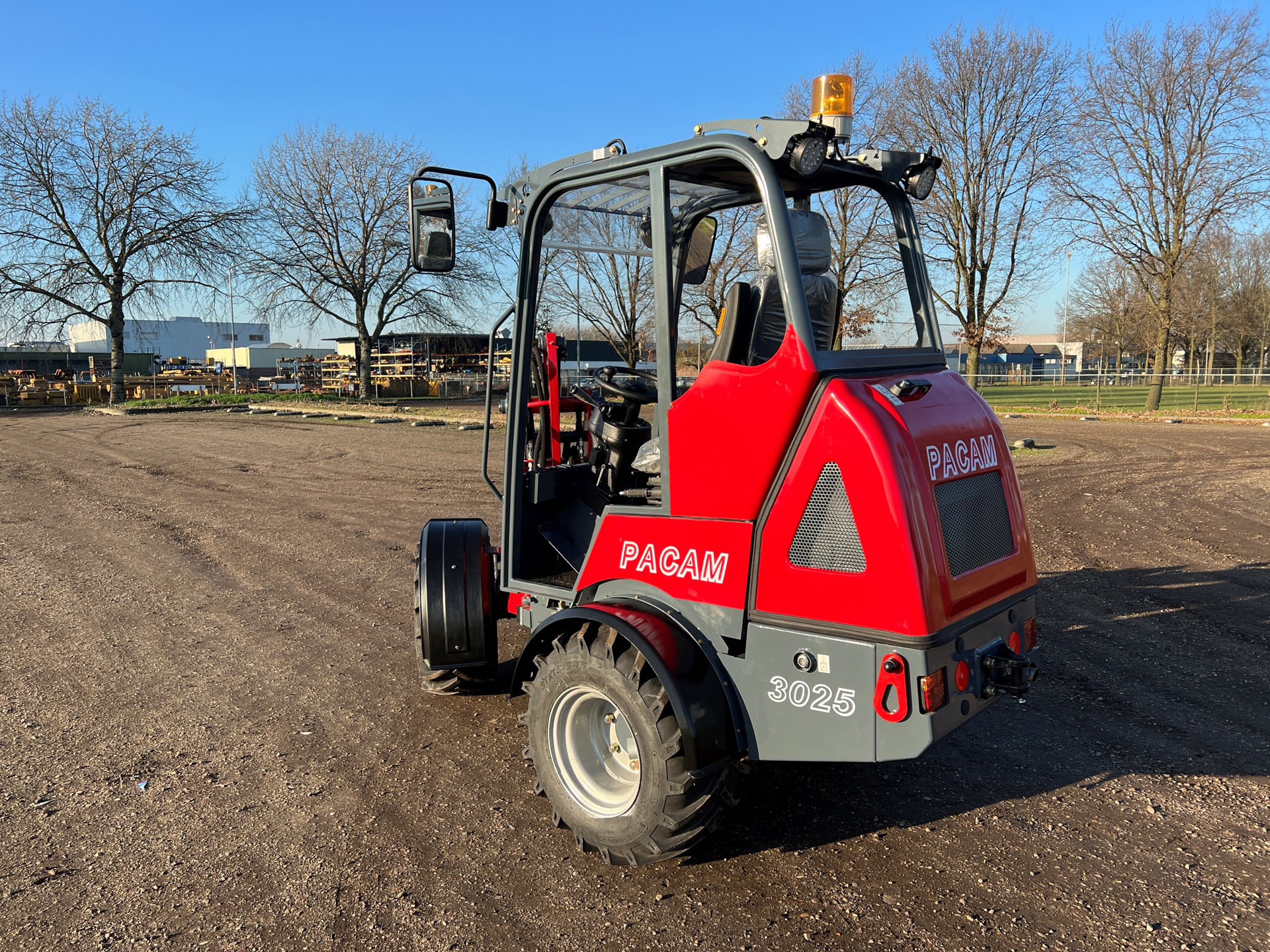

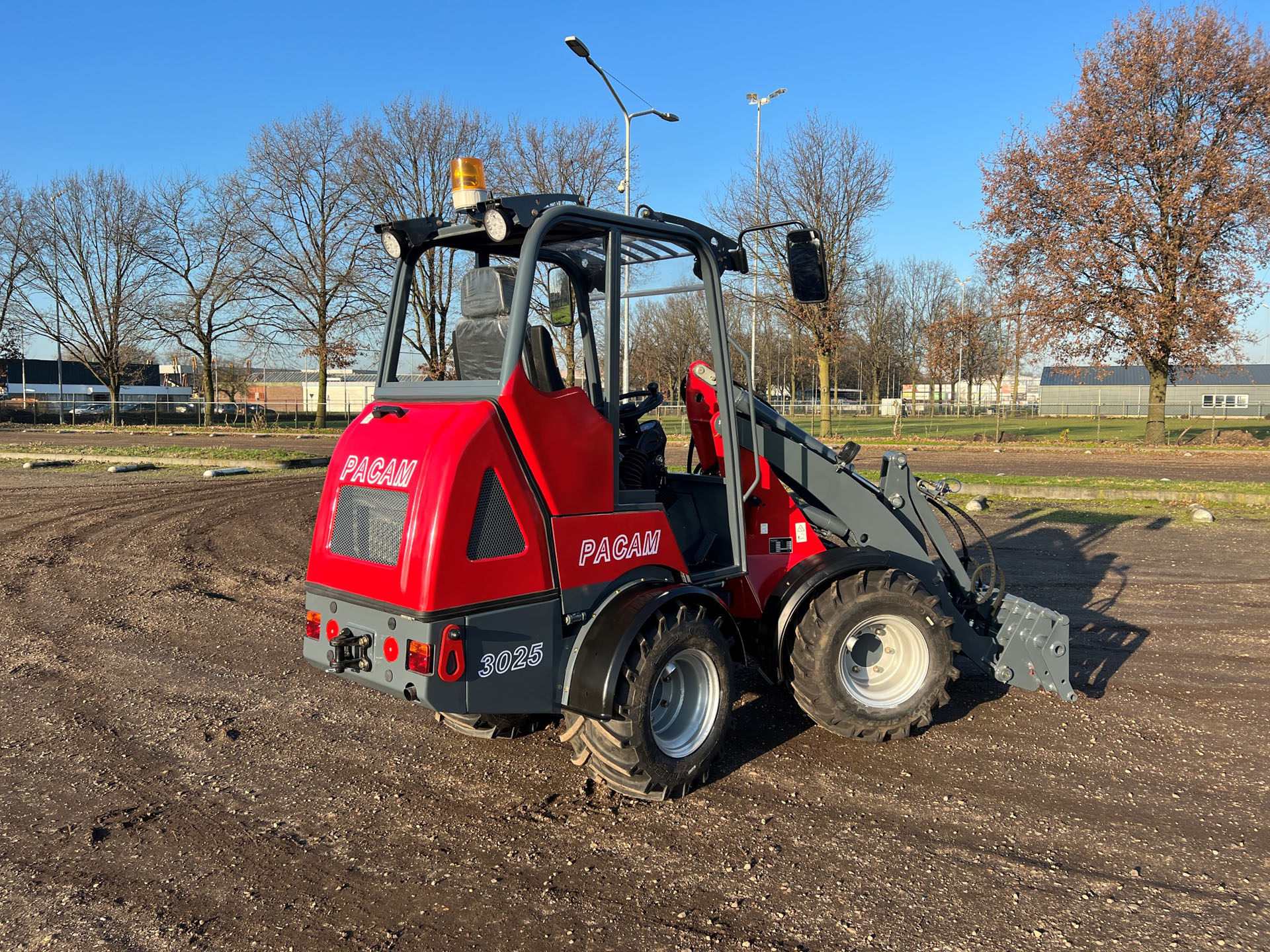

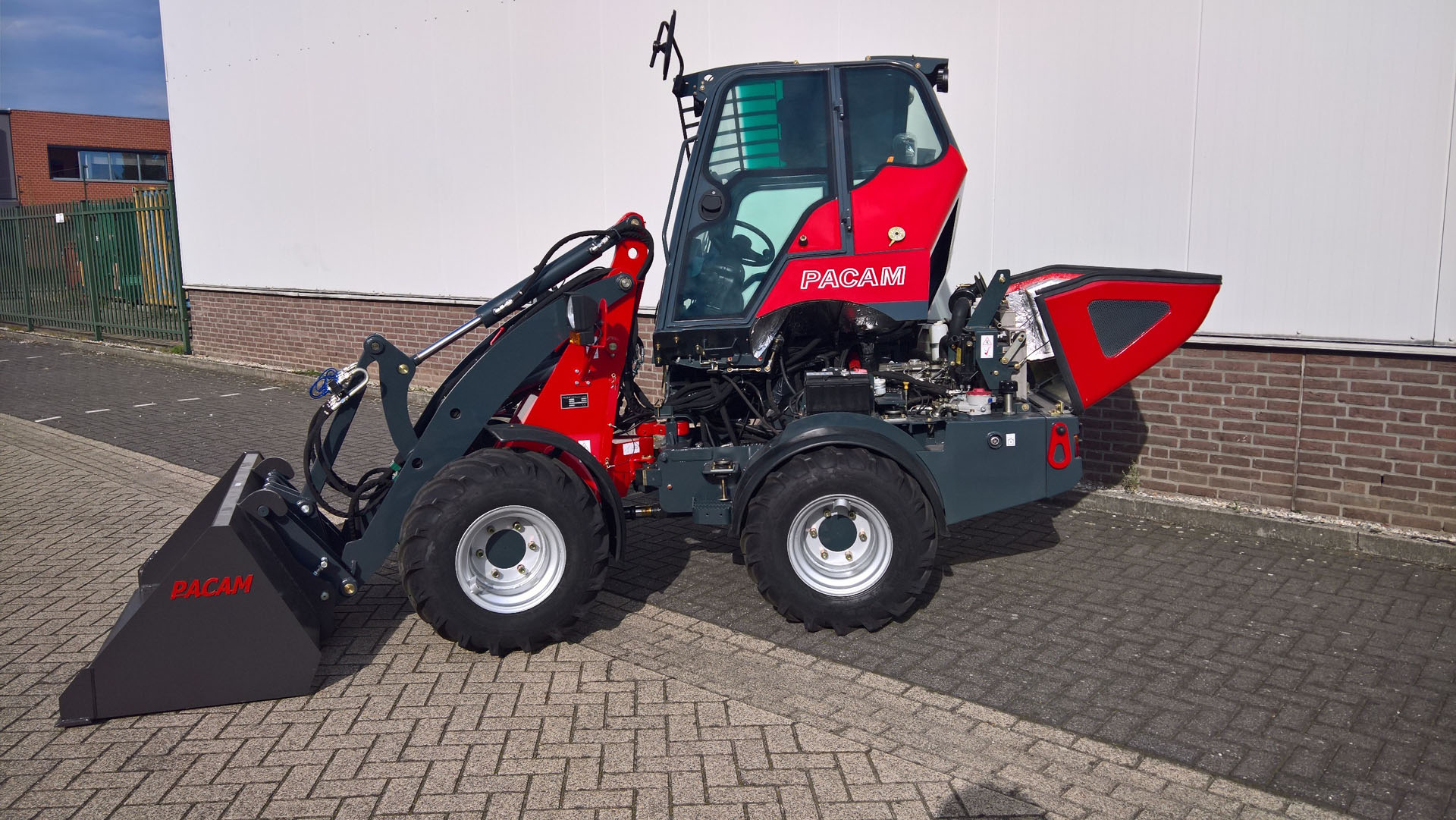

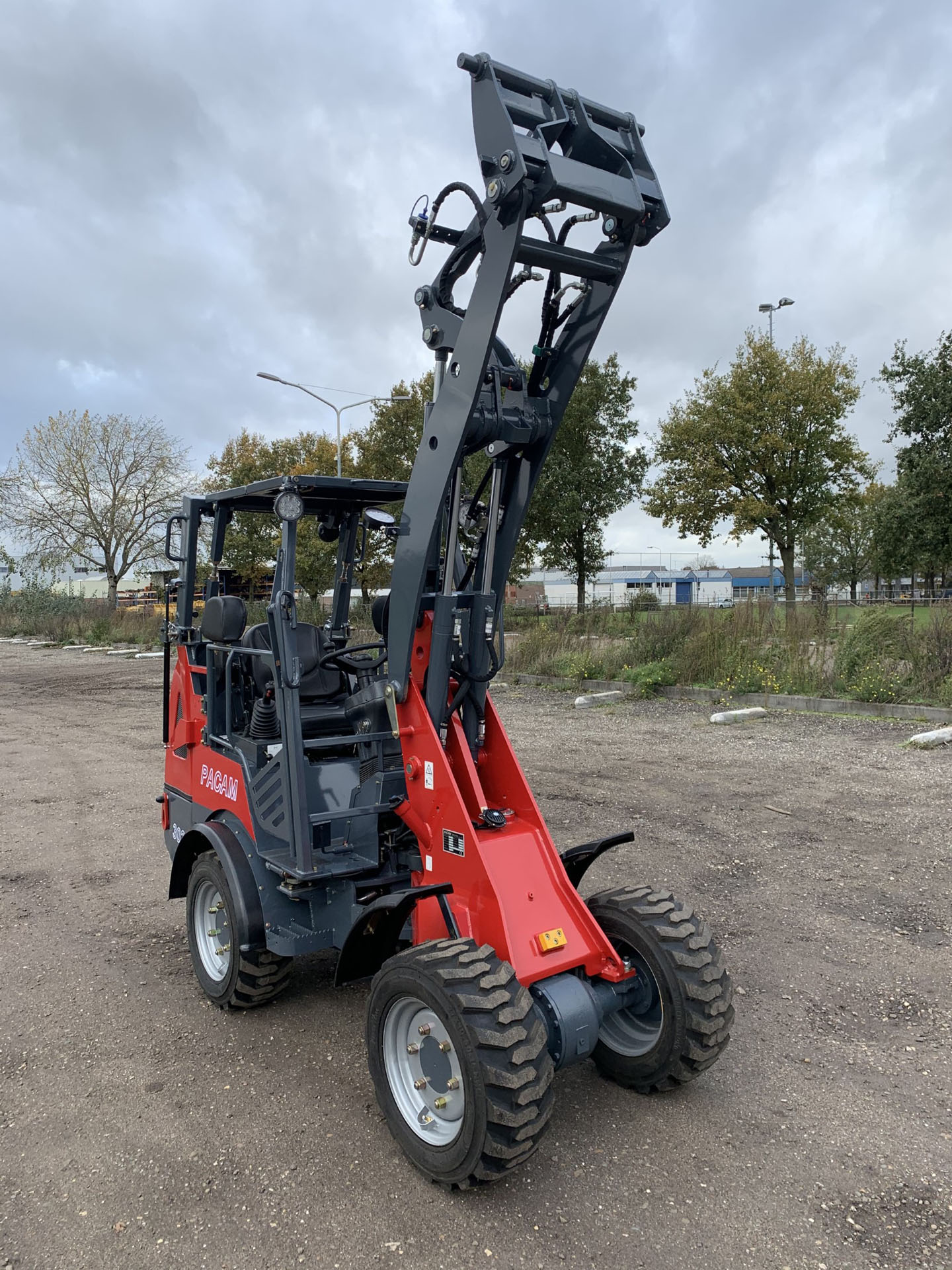

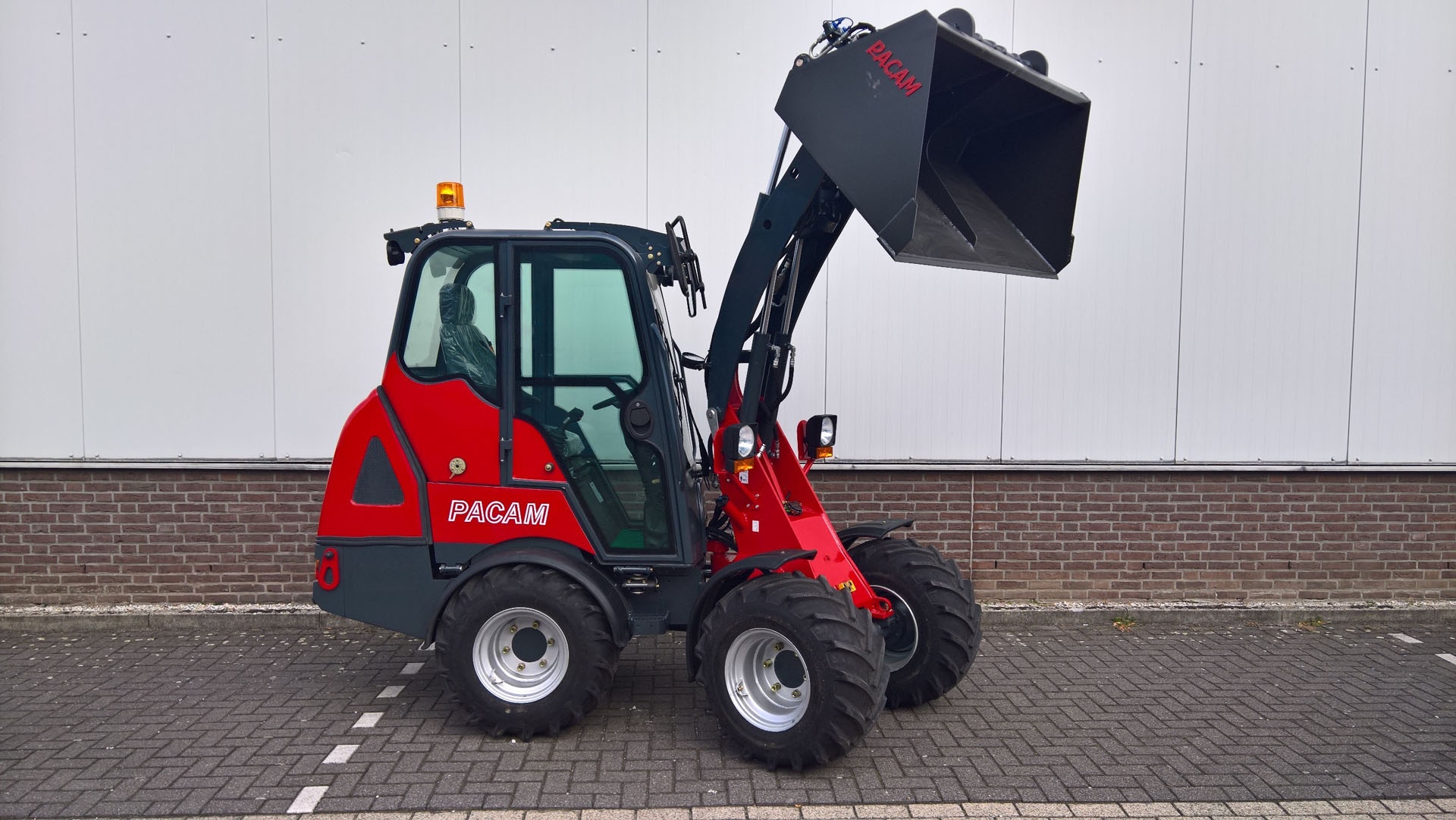

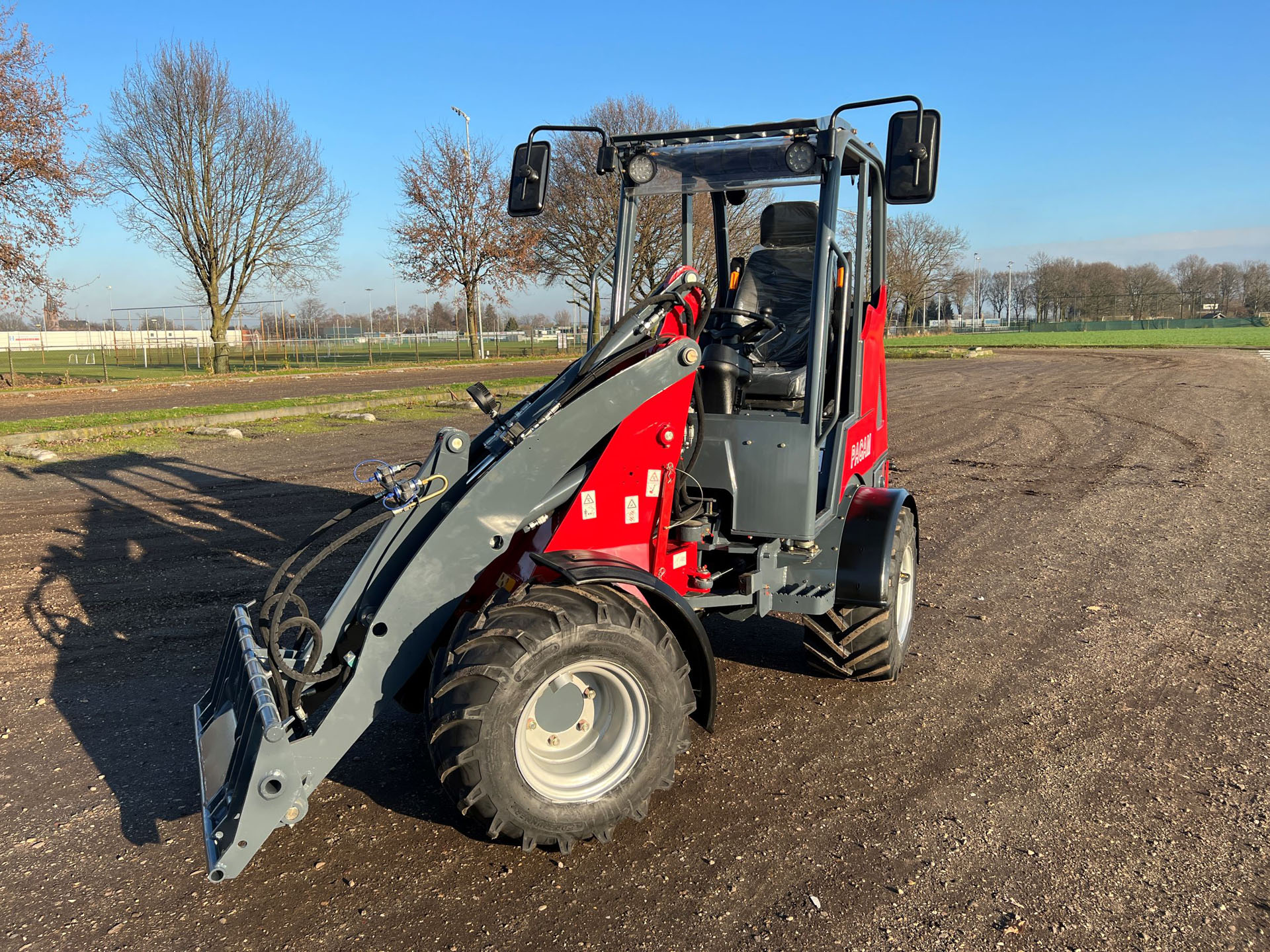

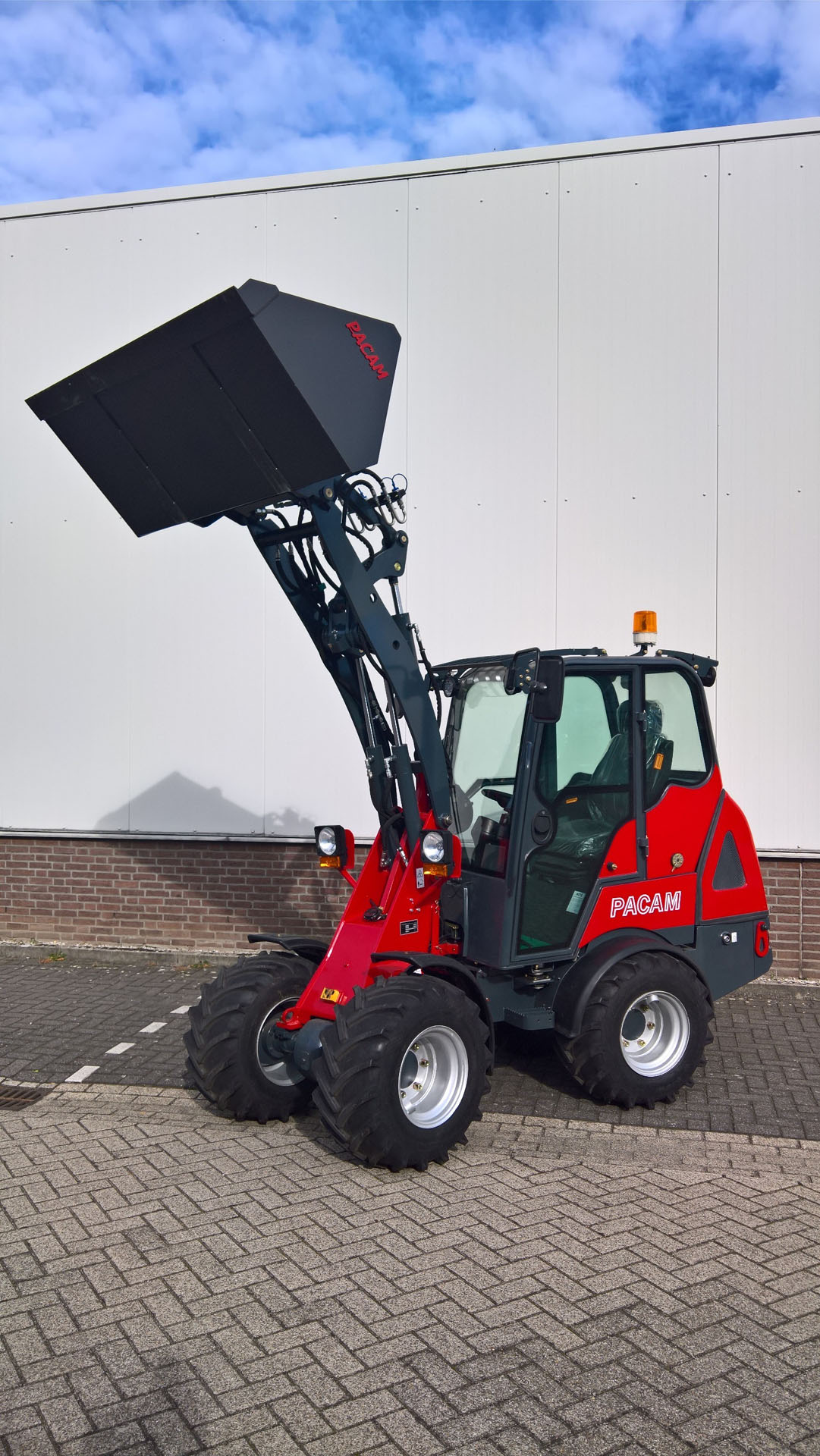

3025
| Technical details | |
| Engine data | |
| Manufacturer | Kubota |
| Engine type | V1505-E4B STAGE V |
| Cylinder | 4 |
| Max. power (Hp) | 25 |
| Engine rotation speed (rpm) | 2800 |
| Capacity (cm3) | 1500 |
| Cooling | Liquid |
| Electrical system | |
| Operating voltage (V) | 12 |
| Traffic light (preparation) | Yes |
| Weights | |
| Operating weight (standard with bucket) (Kg) | 2475 |
| Tipping loads in bucket (Kg) (according to ISO 14397) | |
| Lift frame horizontal / machine straight | 1340 |
| Lift frame horizontal / machine articulated | 975 |
| Tipping loads on pallet fork (Kg) (according to ISO 14397) | |
| Lift frame horizontal / machine straight (S) | 1580 |
| Lift frame horizontal / machine straight (T) | 1350 |
| Lift frame horizontal / machine straight (U) | 1040 |
| Lift frame horizontal / machine straight (V) | 810 |
| Lift frame at the bottom / machine straight (W) | 2185 |
| Lift frame at the bottom / machine straight (X) | 1360 |
| Lift frame at the bottom / machine straight (Y) | 1090 |
| Vehicle data | |
| Driving speed (km/h) | 18 |
| One or two speeds gear switching under load possible | Yes |
| Capacity of fuel tank (L) | 46 |
| Capacity hydraulic oil tank (L) | 30 |
| Hydraulic driveline | |
| Manufacturer | Bosch-Rexroth |
| Hydrostatic four-wheel drive | Yes |
| Output (l/min) | 80 |
| Working pressure (bar) | 320 |
| Hydraulic operation | |
| Output (l/min) | 45 |
| Working pressure (bar) | 200 |
| Hydraulic steering | |
| Output (l/min) | 45 |
| Working pressure (bar) | 150 |
| Standard equipment | |
| Tyres | 27x10.5-15 NHS |
| Hydraulics | |
| Single-hand control next to the seat | Yes |
| Main valve including floating + locking position | Yes |
| Joystick | Gessmann |
| Front hydro connection DN12 | Yes |
| 4th control circuit, comfort; operated via button on joystick, DN 12 | Optional |
| Hydraulic quick shift system for provided tools | Yes |
| All-hydraulic articulated steering | Yes |
| Hydraulic oil cooler | Yes |
| Driver's position | |
| Comfortable seat with safety belt | Yes |
| Work lamps at the front | Yes |
| Work lamps at the rear | Yes |
| Lighting in acc. for road traffic | Optional |
| Fuel gauge | Yes |
| Engine-hour indicator | Yes |
| Adjustable steering column | Yes |
| Axles | |
| Brakes | |
| Drum brake / Combination hydrostatic | Yes |
| Parking brake drum | Yes |
| Powertrain | |
| Planetary end reduction | No |
| Differential lock 100 % | Yes |
| Hydrostatic four-wheel drive | Yes |
| Pto gear and drive shaft | Yes |
| Safety | |
| Safety bar/canopy ROPS/FOPS certified | Yes |
| Cabin with heating and ventilation, ROPS / FOPS-certified | Optional |
| CE approved | Yes |
| Seat with safety belt | Yes |
| Other | |
| Battery cut-off switch | Yes |
| Towing hook | Yes |
| Weights | |
| Weights | 45 |
| Operating weight (standard with bucket) (Kg) | 200 |
| Lift frame horizontal / machine straight | 45 |
| Lift frame horizontal / machine articulated | 150 |
| Lift frame horizontal / machine straight | 27x10.5-15 NHS |
| Lift frame at the bottom / machine straight | Yes |
| Lift frame at the bottom / machine articulated | Yes |
| Lift frame at the bottom / machine straight / counterweight | Gessmann |
| Lift frame at the bottom / machine articulated / counterweight | Yes |
|
| Vehicle data | |
| Vehicle data | Optional |
| Driving speed (km/h) | Yes |
| One or two speeds gear switching under load possible | Yes |
| Capacity of fuel tank (L) | Yes |
| Hydraulic driveline | |
| Hydraulic driveline | Yes |
| Manufacturer | Yes |
| Hydrostatic four-wheel drive | Yes |
| Output (l/min) | Yes |
| Working pressure (bar) | Optional |
| Hydraulic operation | |
| Hydraulic operation | Yes |
| Output (l/min) | Yes |
| Working pressure (bar) | Yes |
| Hydraulic steering | |
| Output (l/min) | Yes |
| Working pressure (bar) | Yes |
| Standard equipment | |
| Tyres | No |
| Hydraulics | |
| Hydraulics | No |
| Single-hand control with floating position next to the seat | Yes |
| Multi-function control stalk | Yes |
| Front hydro connection DN12 | Yes |
| 4th control circuit, comfort; operated via button on joystick, DN 12 | Yes |
| Hydraulic quick shift system for provided tools | Yes |
| All-hydraulic articulated steering | Optional |
| Hydraulic oil cooler | Yes |
| Driver's position | |
| Driver's position | Yes |
| Comfortable seat with safety belt | Yes |
| Work lamps at the front | Yes |
| Work lamps at the rear | Yes |
| Lighting in acc. for road traffic | 1571 |
| Fuel gauge | 627 |
| Engine-hour indicator | 1069 |
| Adjustable steering column | 3317 |
| Axles | |
| Axles | 4170 |
| Brakes | |
| Brakes | 1240 |
| Drum brake / Combination hydrostatic | 47 |
| Parking brake drum | 2230 |
| Powertrain | |
| Powertrain | 1755 |
| Planetary end reduction | 2106 |
| Differential lock 100 % | 2714 |
| Hydrostatic four-wheel drive | 2923 |
| Pto gear and drive shaft | 3654 |
| Safety | |
| Safety | 510 |
| Safety bar/canopy ROPS/FOPS certified | 45 |
| Cabin with heating and ventilation, ROPS / FOPS-certified | 45 |
| CE approved | 47 |
| Seat with safety belt | 820 |
| Reversing alarm | 1080 / 1340 |
| Other | |
| Other | 202 |
| Battery cut-off switch | 1106 |
| Towing hook | 2206 |
|
| Dimensions | |
| (A) Wheelbase (mm) | 1571 |
| (B) Front axle to hinge pin (mm) | 627 |
| (C) Rear overhang (mm) | 1069 |
| (D) Length without bucket (mm) | 3317 |
| (E) Length with bucket (mm) | 4170 |
| (F) Seat height (mm) | 1240 |
| (G) Digging depth (mm) | 47 |
| (H) Height to canopy top (mm) | 2230 |
| (H2) Height to canopy top, when folded down (mm) | 1755 |
| (J) Max. dumping height (mm) | 2106 |
| (K) Max. height of horizontal bucket (mm) | 2714 |
| (L) Max. height of hinge pin (mm) | 2923 |
| (M) Max. operating height (mm) | 3654 |
| (N) Dumping reach (mm) | 510 |
| (O) Bucket rollback at ground (°) | 45 |
| (P) Dumping angle (°) | 45 |
| (Q) Bucket rollback at full height (°) | 47 |
| (R) Wheel tread (mm) | 820 |
| (S) Overall width standard tyres / wide tyres (mm) | 1080 / 1340 |
| (T) Ground clearance (mm) | 202 |
| (U) Inside turning radius (mm) | 1106 |
| (V) Radius at outer edge (mm) | 2206 |
| (W) Turning radius with bucket (mm) | 2625 |
| (Y) Steering angle (°) | 45 |
